Garmin Reactor 40 Sail Corepack w/SmartDrive GHC 50 Display [010-02794-11]

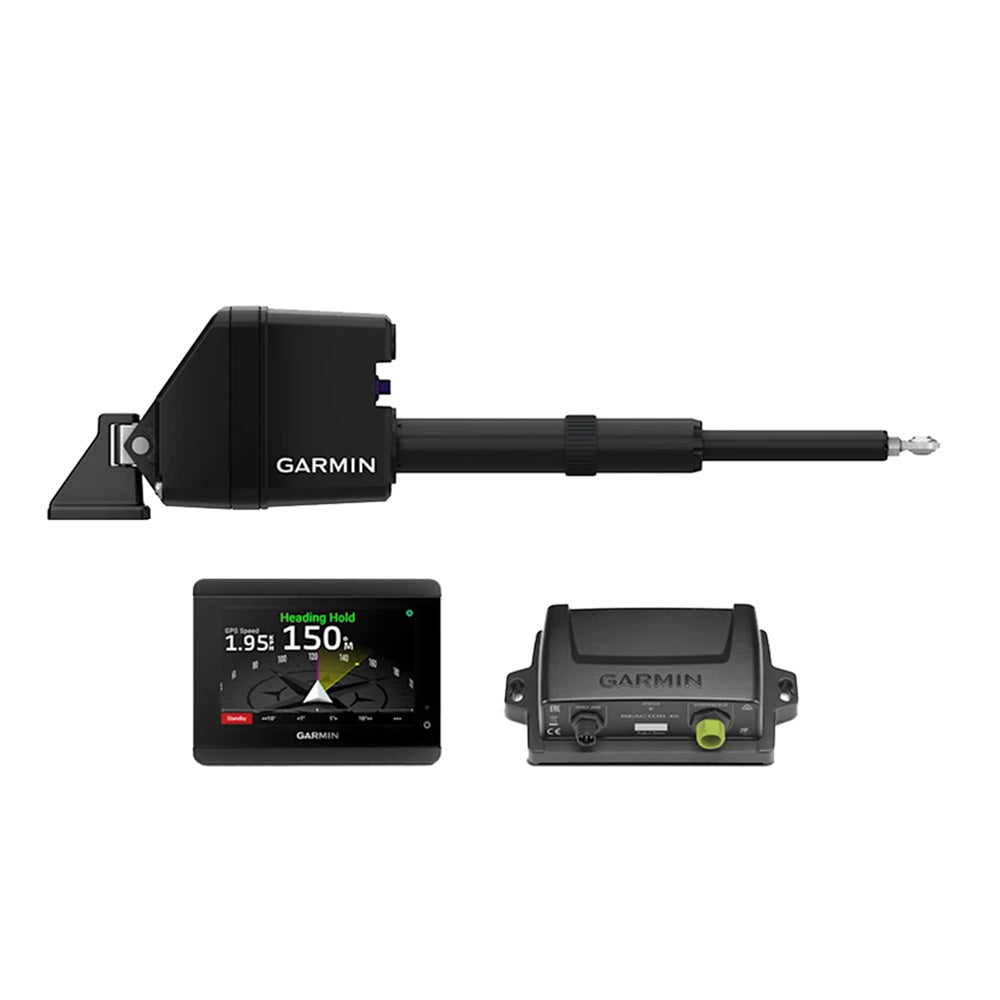

Reactor™ 40 Sail Corepack with SmartDrive™ & GHC™ 50 Display

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.

GHC 50 Display

• A 5” touchscreen interface with a bright display. Call it navigating with a simple touch.
• Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
• Share settings with your Garmin MFDs, and watch your integrated system come to life.
• From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.
• Control your boat your way with wired or wireless remote-controlled options.

Specifications:

• Dimensions without sun cover (H x W x D): 4.13” x 5.51” x 2.01” (105 x 140 x 51 mm)
• Dimensions with sun cover (H x W x D): 4.45” x 5.67” x 2.20” (113 x 144 x 56 mm)
• Touchscreen: yes
• Display resolution: 800 x 480
• Display type: WVGA
• Weight: 11.57 oz (328 g)
• Water Rating: IPX7
• Mounting options: Flat or flush
• NMEA 2000 ports: 1
• Garmin Marine Network ports: 1
• ANT+ (Connectivity): yes
• Garmin Wi-Fi Network (local connection): yes
• Power input: 9 to 32 VDC
• Typical current draw at 12 VDC: 220 mA
• Maximum current draw at 12 VDC: 400 mA
• Maximum power usage at 10 VDC: 4.9 W

Course Computer Unit (Reactor™ 40)

Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and optional NMEA 2000-compatible devices.

Specifications:

• Dimensions: 3 19/32" diameter (91.4 mm)
• Weight: 5.6 oz (159 g)
• Temperature range: From -15 C to +55 C (5 F to 131 F)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft (3 m)
• NMEA 2000® power input: 9-16 V
• NMEA 2000 LEN: 3 (150 mA)

SmartDrive™

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.

FITS YOUR VESSEL

The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).

SMARTDRIVE ACTUATOR

This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.

SOLID-STATE 9-AXIS AHRS

You can mount the Reactor 40 CCU nearly anywhere, in any orientation.

WATER CONDITION REACTIONS

This autopilot reacts to sea conditions so you can sail with confidence — when pitching or rolling.

CALIBRATE WITH EASE

Reactor 40 makes commissioning and calibrating quick and easy.

Specifications:

• Drive unit type: Mechanical linear
• Maximum boat displacement: 33,000 lbs (15,000 kg)
• Stroke length: 12" (300 mm)
• Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
• Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
• Weight: 19.8 lbs (9 kg)
• Supply voltage: 10 to 32 Vdc
• Average typical current at 12 V: 0.8 to 5 A, depending on conditions
• Peak momentary current: 25 A
• Lock-to-lock time: 11 seconds
• Operating temperature: -20° to 55° C (-4° to 131° F)
• Water ingress: IPX7

In The Box:

• Reactor™ CCU (course computer unit)
• SmartDrive™ actuator
• GHC™ 50 display
• Buzzer
• Power cables
• 2 m backbone/drop cable, T-connectors, power cable, and terminators for the NMEA 2000® network
• Mounting hardware
• Documentation
