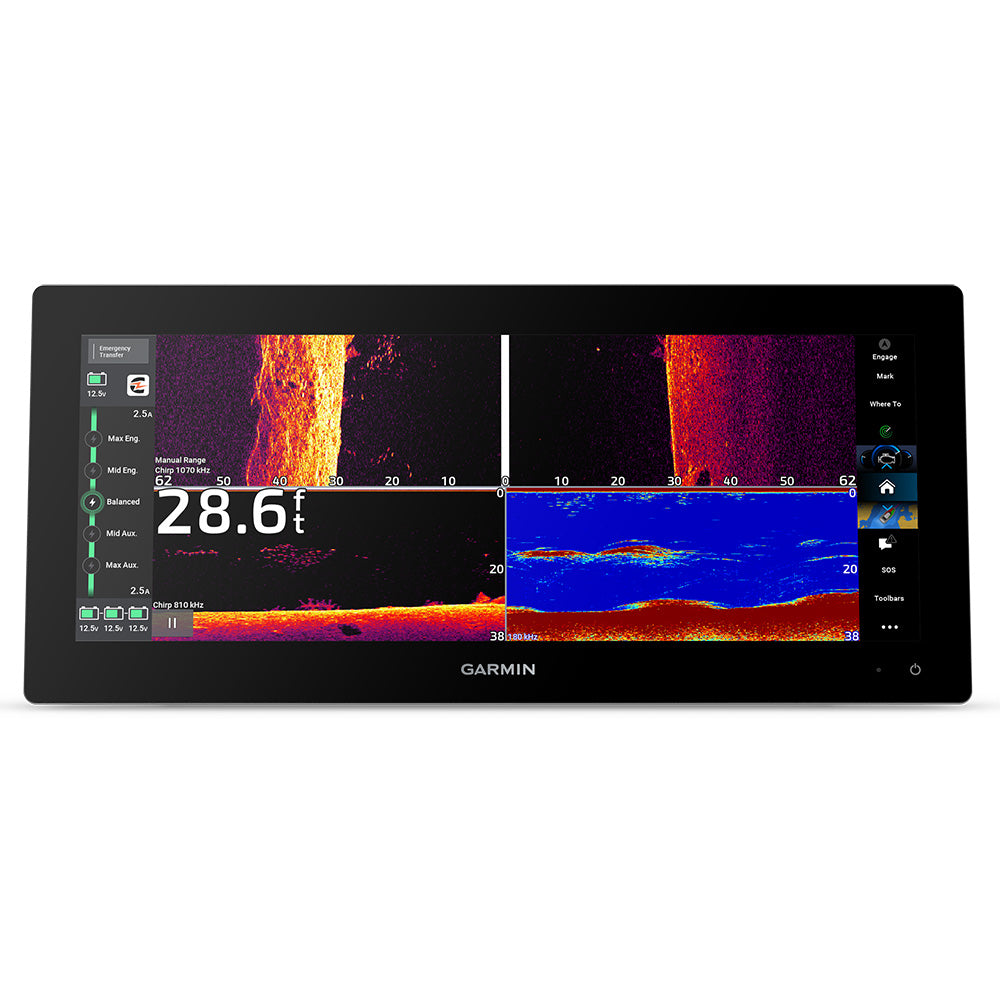

GPSMAP® 1543xsv Ultrawide Combo GPS/Fishfinder GN+

WIDEN YOUR HORIZONS

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Features:

• Ultrawide in-plane switching (IPS) 15" display fits a variety of helm layouts, including "floating display" configurations
• Connect to compatible third-party devices with digital switching and Onehelm™ integrations
• Easily build your marine system by using our advanced network connectivity
• Navigate waters confidently with preloaded Garmin Navionics+ charts
• See below your boat with built-in sonar capabilities
• Manage your marine experience from nearly anywhere¹

Sleek Modern Design

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

Bright and Clear Optics

This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity, and sunlight readability — even with polarized sunglasses.

Split to Fit

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

Two Mounting Options

A bail-mount option with inset knobs and a bracket supports unique “floating display” installations, while a rear-mount option is provided for secure flush- and flat-mount helm solutions.

Traditional and Scanning Sonar Support

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearVü™ and SideVü™ scanning sonars feature vivid, high-contrast color palettes to help distinguish fish from structure (transducer required; sold separately).

Live Sonar Support

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required; sold separately) to see all around your boat in real time.

Preloaded Mapping

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology² and a 1-year subscription for downloadable daily updates and more on select models.

Optional Charts and Maps

Bring premium chart features to your chartplotter with an optional upgrade to a Garmin Navionics Vision+™ subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.

Garmin Sailassist™ Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more.

Sailing Polars

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed, so you know whether you need to adjust sail trim.

Garmin Marine Network

If you have multiple compatible Garmin devices on your boat, you can share information, such as maps, user data, radar, and IP camera video, among them.

NMEA 2000® and NMEA 0183 Networks

Connect to compatible autopilots, digital switching, weather, the Fusion® audio system, media, VHF, AIS, and more from one screen.

Activecaptain® App

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications (when paired with your smartphone), software updates, Helm™ app, Garmin Quickdraw™ Community data, and more¹.

Integrated Ant® Technology

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.

Engine Connectivity

You can connect your chartplotter to different engines, including select Yamaha® and Mercury® engines.

Onehelm Feature

This feature brings together all of the operations and capabilities of EmpirBus™ digital switching and other third-party devices on one screen.

Send inReach® Device Messages

Pair your inReach satellite communicator³ to your chartplotter, and type custom messages by using your MFD’s on-screen keyboard. Access your contact list, or enter an email, inReach address, or phone number. You can also group messages by conversation for a texting-like experience.

Power-Pole® Shallow Water Anchor

By networking the GPSMAP 15x3 chartplotter with your Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features⁴ from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and end-of-route anchoring. Spend more time fishing, less time positioning.

Trolling Motor Integration

Get support and integration for your Force series trolling motor (sold separately) to gain more control while you fish.

What's In The Box?

• GPSMAP 1543xsv ultrawide chartplotter
• microSD™ card preinstalled
• Power cable
• Thin flush mount kit with gasket
• Protective cover
• 8-pin transducer to 12-pin sounder adapter cable
• 2 m backbone/drop cable and T-connector for NMEA 2000® Network
• Documentation

Specifications:

General:

• Dimensions: 15.3" x 7.02" x 3.3"
• Weight: 7.2 lbs
• Water Rating: IPX7
• Touchscreen: Yes
• Display Type: Ultrawide Display, IPS
• Display Size: 13.6" x 5.1"; 14.5" diagonal
• Display Resolution: 1920 x 720 pixels
• Mounting Options: Bail, flush, or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)
• Polarized Lens Viewability: Yes

Maps & Memory:

• Accepts Data Cards: 2 microSD™ cards (back of device)
• Compatible with Garmin SD Card Reader: Yes (USB card reader)
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• GALILEO: Yes
• Built-in Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: yes (with external GPS antenna)

Built-In Maps:

• Built-in Auto Guidance+: Yes
• Garmin Navionics+ Inland & Coastal: Yes
• Tide Tables: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes
• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• GSD Black Box Sonar Support: Yes
• GCV Black Box Sonar Support: Yes
• ActiveCaptain® Compatible: Yes
• Supports Voice Commands: yes (with external accessory)
• Grid (Garmin Remote Input Device) Compatible: Yes
• Wireless Remote Compatible: Yes
• Sailing Features: Yes
• Spoken Audio Alerts: Yes
• Onehelm Support: Yes

Sonar Features:

• Displays Sonar: Yes
• Power Output: 1 kW
• Traditional Sonar (Dual Frequency/Beam): Yes
• ClearVÜ: Yes
• SideVÜ: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

Connections:

• NMEA 2000® Ports: 1
• NMEA 0183 Input (RX) Ports: 1
• NMEA 0183 Output (TX) Ports: 1
• Video Input Ports: 1 (BNC composite)
• J1939 Ports: 1
• Garmin Marine Network Ports: 2
• 12-Pin Transducer Ports: 1
• USB Ports: Yes
• Bluetooth® Pairing: Yes (BLE)
• Ant® (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

1Requires ActiveCaptain app on your smartphone paired to your chartplotter

2Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

3Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

4Integration of these features requires purchase of a C-Monster® GATEWAY through Power-PoleWi-Fi is a registered trademark of the Wi-Fi Alliance.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Cartography Brand: Garmin Navionics+
• Screen Size: 15"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 8"H x 11"W x 20"L WT: 13.9 lbs
• UPC: 753759345747
