Victron Orion 48/12-60 DC - DC Non-Isolated Converter [ORI481260020]

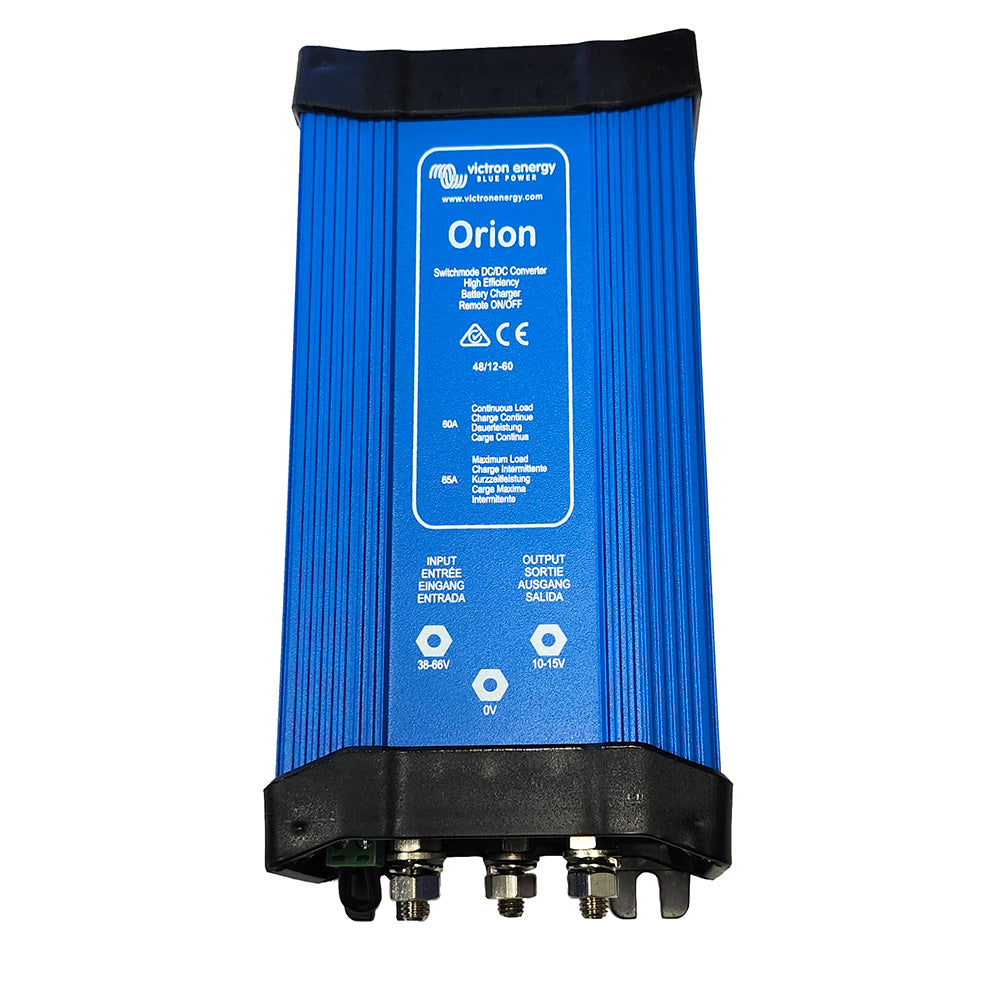

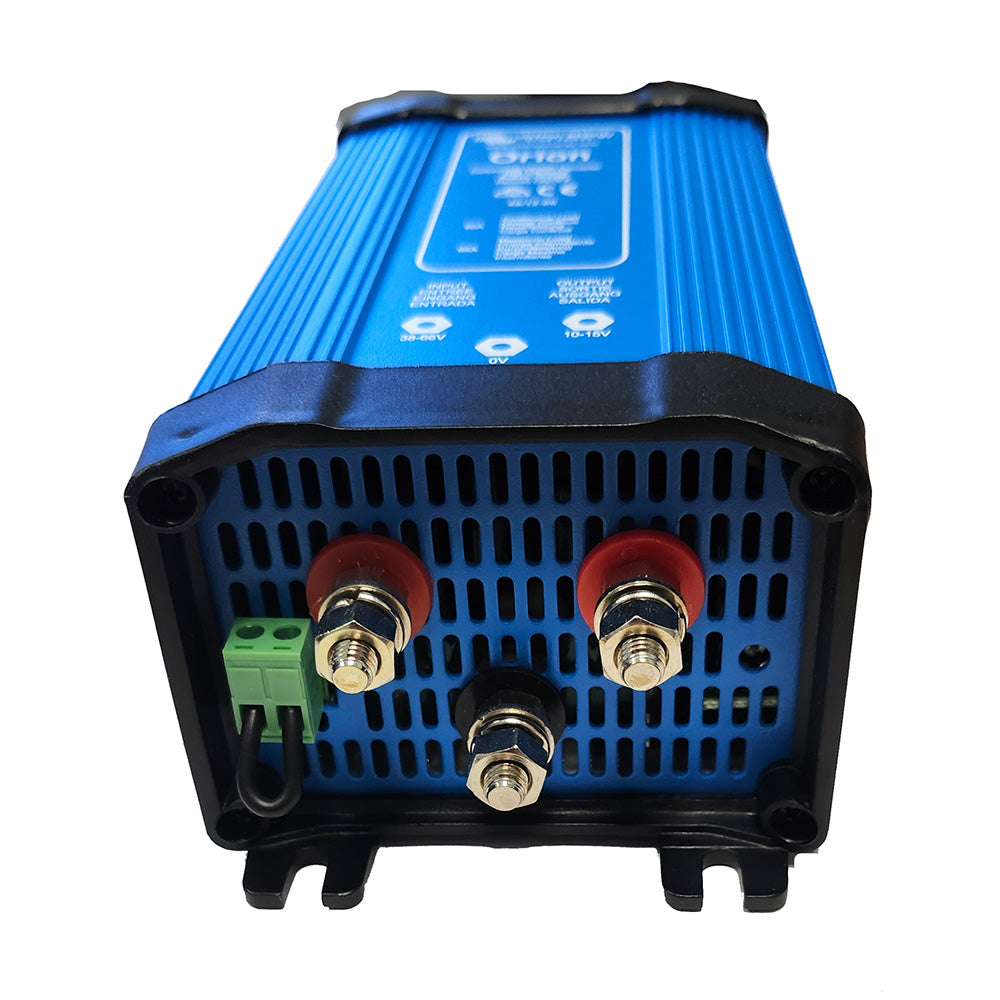

Orion 48/12-60 DC-DC Non-Isolated Converter

The Victron Orion 48/12-60A DC-DC Converter IP20 is a high-efficiency, non-isolated DC-DC converter designed to reliably convert 48V DC input to 12V DC output, delivering up to 60A of continuous current. Ideal for applications where a robust 12V supply is required from a 48V system, this converter is commonly used in solar energy setups, telecom systems, industrial DC power distribution, and automotive or marine applications.

Featuring a non-isolated design, the Orion 48/12-60A allows the input and output to share a common ground, providing high efficiency while keeping the installation simple. The IP20-rated enclosure is designed for indoor panel mounting, with passive convection cooling for silent operation. Built-in protections against short-circuits, over-temperature, and low voltage make it a safe and reliable choice for demanding 48V to 12V conversion.

Additional features include adjustable output voltage, remote on/off control, and compatibility with standard 12V batteries, making it ideal for charging or powering sensitive DC loads. With Victron Energy’s reputation for durability and performance, this converter ensures your systems stay powered efficiently and safely.

Features:

• Converts 48v DC to 12V DC
• 60A continuous output current (720W)
• Non-isolated (common negative)
• IP20 rated for indoor/panel mounting
• Adjustable output voltage: 10-15V
• Short-circuit, over-temperature, and low-voltage protection
• Passive convection cooling, silent operation
• Remote on/off capability
• Ideal for solar, telecom, industrial, automotive, and marine systems
• 5 Year Warranty Included
